The 108 Series Six-Track Sliding Windows offer ultra-smooth operation with dual-row bearings and multi-wheel balance systems. Featuring Xinyi glass (argon-filled) and optional built-in handrails, they combine functionality with modern design. The triple EPDM seals and PA66GF25 thermal breaks ensure weather resistance and energy efficiency. Ideal for large openings, these windows are perfect for creating seamless indoor-outdoor connections in living rooms or sunrooms.
Place of Origin: |
Shanghai China |
Brand Name: |
PEAK |
Model Number: |
PEAK-108 Series Six-Track Sliding Window |
Minimum Order Quantity: |
10m2 |
Price: |
Quote according to specific configuration |
Packaging Details: |
Pearl-cotton wrapping & wooden frames |
Delivery Time: |
|
Payment Terms: |
50% deposit, balance before shipment |
Applications:
Balcony, Living Room, Bedroom, Kitchen, Sunroom.
Specifications:
Opening Modes |
Sliding |
Material Thickness |
1.8mm/2.0mm |
Hardware |
CMECH/HOPO/GIESSE/PAG |
Process Details |
Integrated corner code with glue injection |
Max Dimensions |
Width <2200mm, Height <2000mm |
Competitive Advantage:
Superior Wind Resistance: Reinforced structural design with glue-injected mullions withstands extreme wind loads, ideal for coastal/high-rise applications.
Advanced Thermal Insulation: PA66GF25 thermal break strips combined with vertical isothermal alignment achieve low U-values, reducing energy costs.

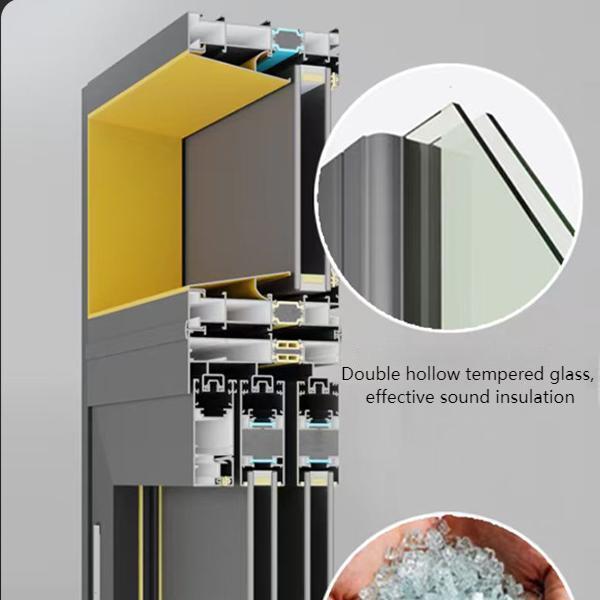

Exceptional Noise Reduction: Multi-chamber profiles + triple EPDM seals + argon-filled glass units block 90% urban noise.
Intelligent Water Management: Gradient drainage channels with pressure-equalized triple sealing (EPDM+TPV hybrid) ensure watertightness.
Security Assurance: Multi-point locking system and tempered laminated glass options.
Sleek Aesthetic Integrity: Flush sash-frame alignment with seamless welds and minimalist 3D lines for modern architectural coherence.

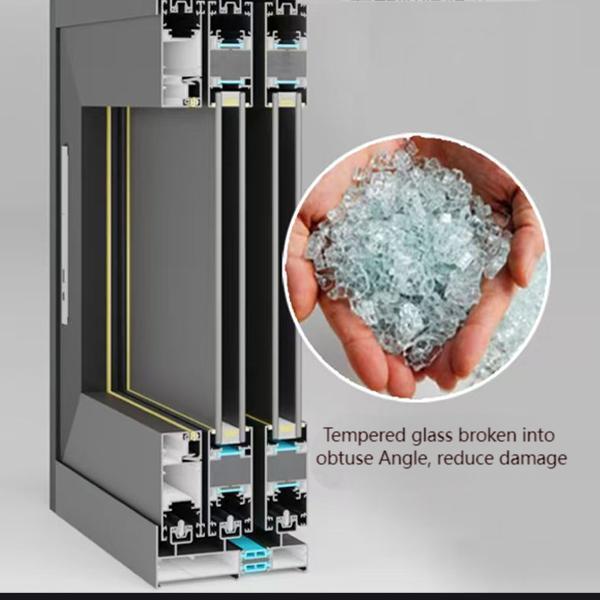

Precision Glazing: Standard Xinyi® tempered glass with argon injection, homogenization treatment, and continuous bent aluminum spacers.
Flexible Operation: Standard outward-opening; Optional inward, tilt-turn, top-hung, or parallel-opening configurations.
Technical Mastery: Full-welded isobaric gaskets, 3-layer EPDM sealing system, and thermal bridge-free vertical profile design.
