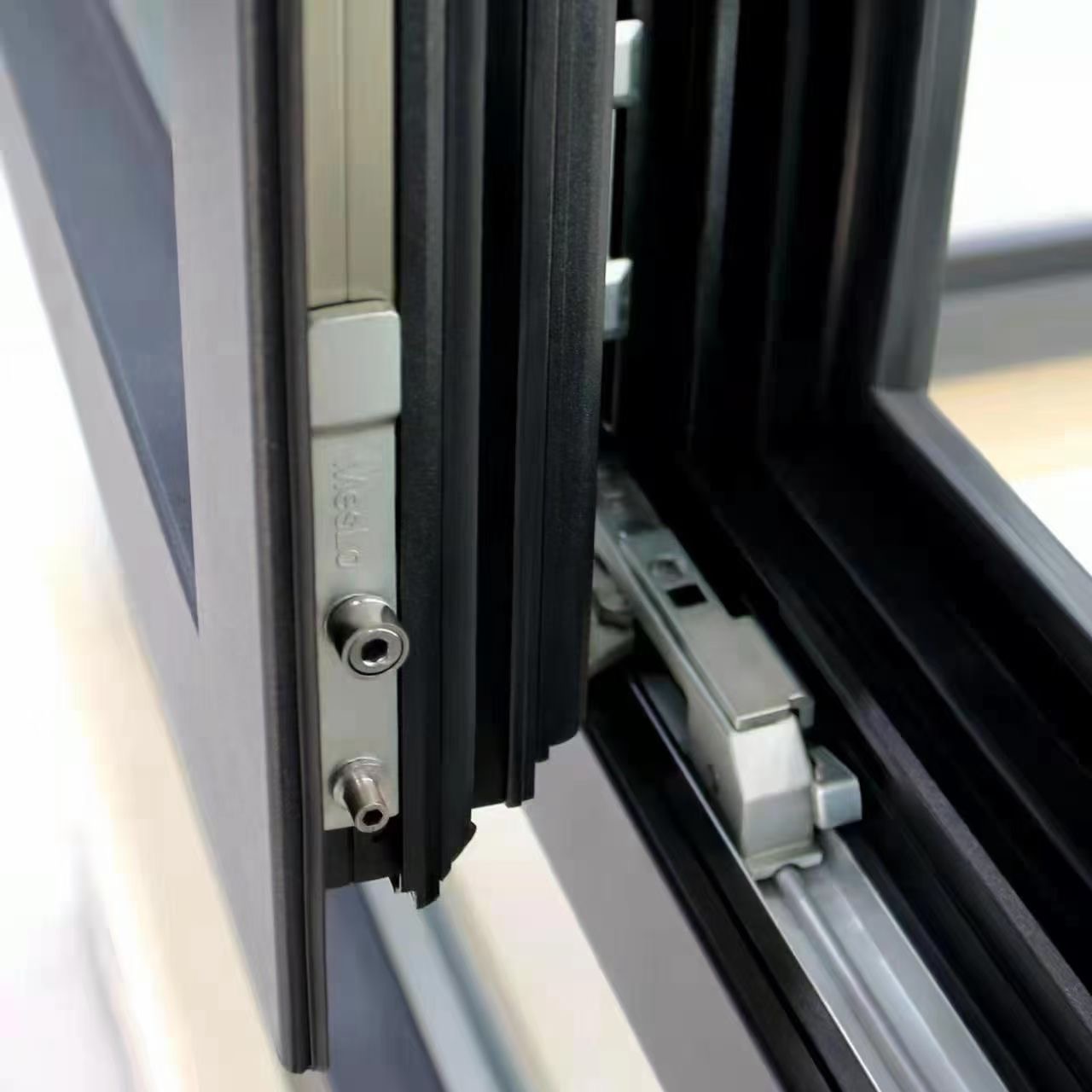

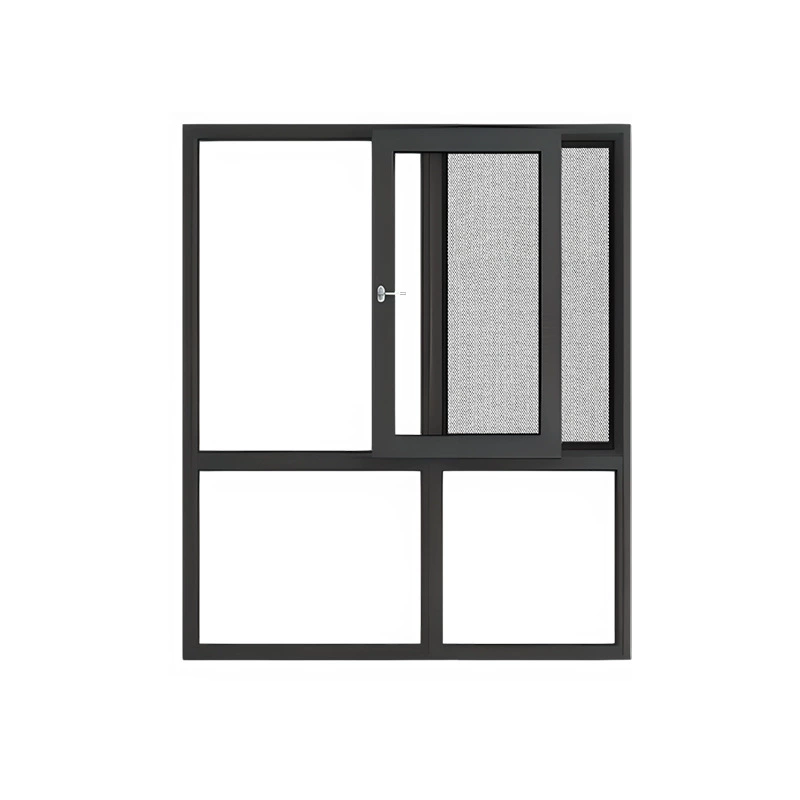

The 100 Series Inward-Tilt Sliding Windows offer versatile ventilation with a sliding-and-tilt mechanism. Featuring hidden hardware and reinforced multi-point locks, they ensure security and smooth operation. The PA66GF25 thermal breaks and EPDM seals provide excellent thermal and weather resistance. Equipped with Xinyi glass (argon-filled) and optional high-transparency screens, these windows are ideal for large spaces like sunrooms and living areas, with a maximum height of 2800mm.
Place of Origin: |
Shanghai China |
Brand Name: |
PEAK |
Model Number: |
PEAK-100 Series Tilt & Slide Window |
Minimum Order Quantity: |
10m2 |
Price: |
Quote according to specific configuration |
Packaging Details: |
Pearl-cotton wrapping & wooden frames |
Delivery Time: |
|
Payment Terms: |
50% deposit, balance before shipment |
Applications:
Balcony, Living Room, Bedroom, Kitchen, Sunroom.
Specifications:
Opening Modes |
Sliding + Inward-Tilt |
Hardware |
CMECH/HOPO/GIESSE/PAG |
Screen Options |
High-Transparency Mesh |
Process Details |
Integrated corner code with glue injection |
Max Dimensions |
Width <750mm, Height <2800mm |
Competitive Advantage:

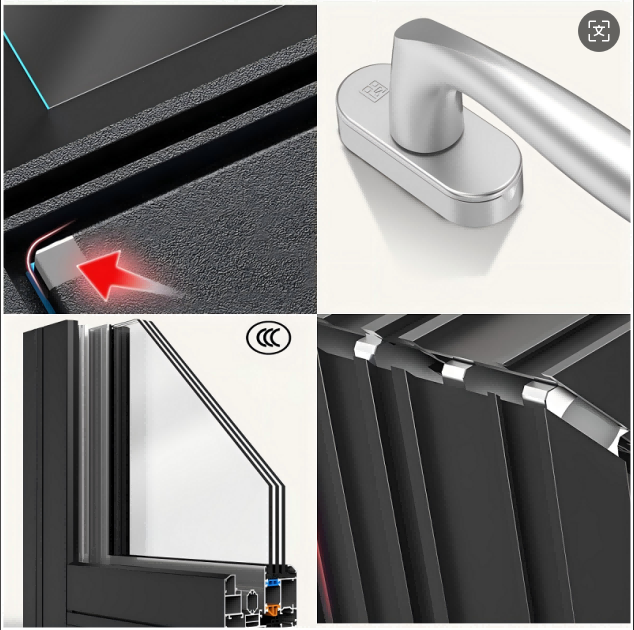

Superior Wind Resistance: Reinforced structural design with glue-injected mullions withstands extreme wind loads, ideal for coastal/high-rise applications.
Advanced Thermal Insulation: PA66GF25 thermal break strips combined with vertical isothermal alignment achieve low U-values, reducing energy costs.
Exceptional Noise Reduction: Multi-chamber profiles + triple EPDM seals + argon-filled glass units block 90% urban noise.

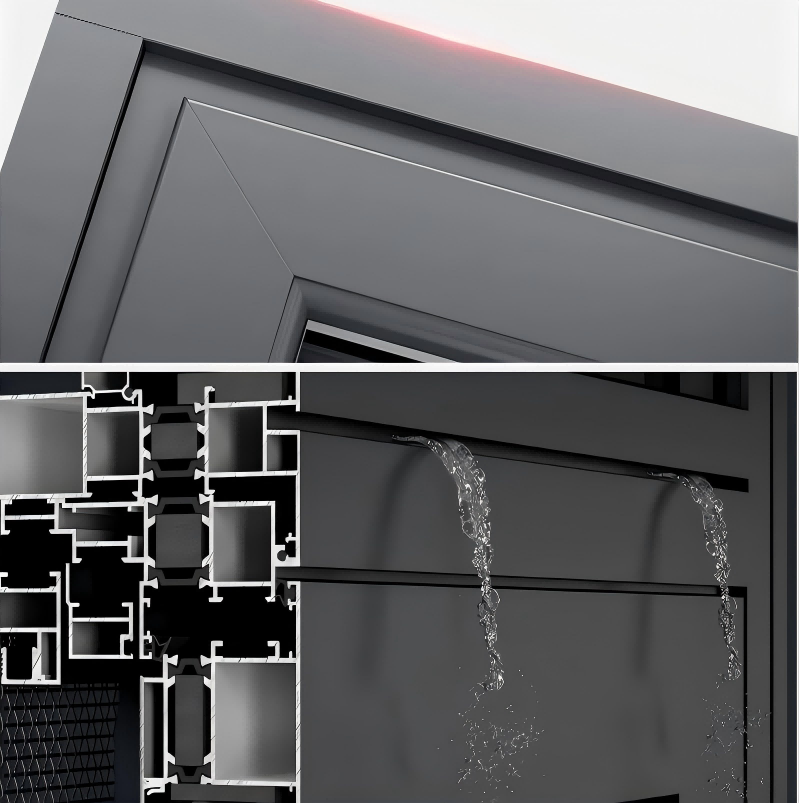

Intelligent Water Management: Gradient drainage channels with pressure-equalized triple sealing (EPDM+TPV hybrid) ensure watertightness.
Security Assurance: Multi-point locking system and tempered laminated glass options.

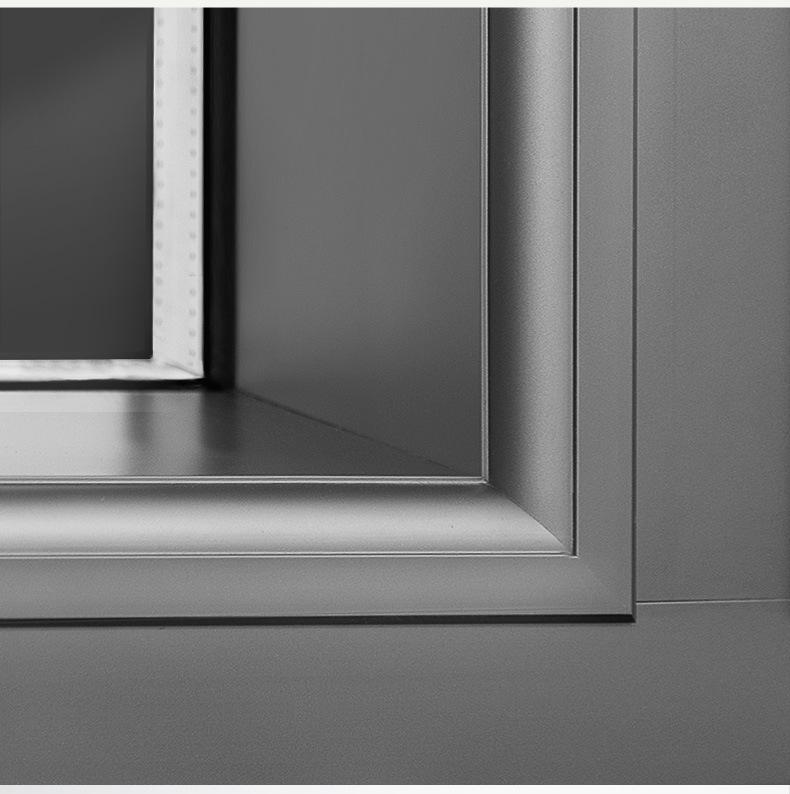

Sleek Aesthetic Integrity: Flush sash-frame alignment with seamless welds and minimalist 3D lines for modern architectural coherence.

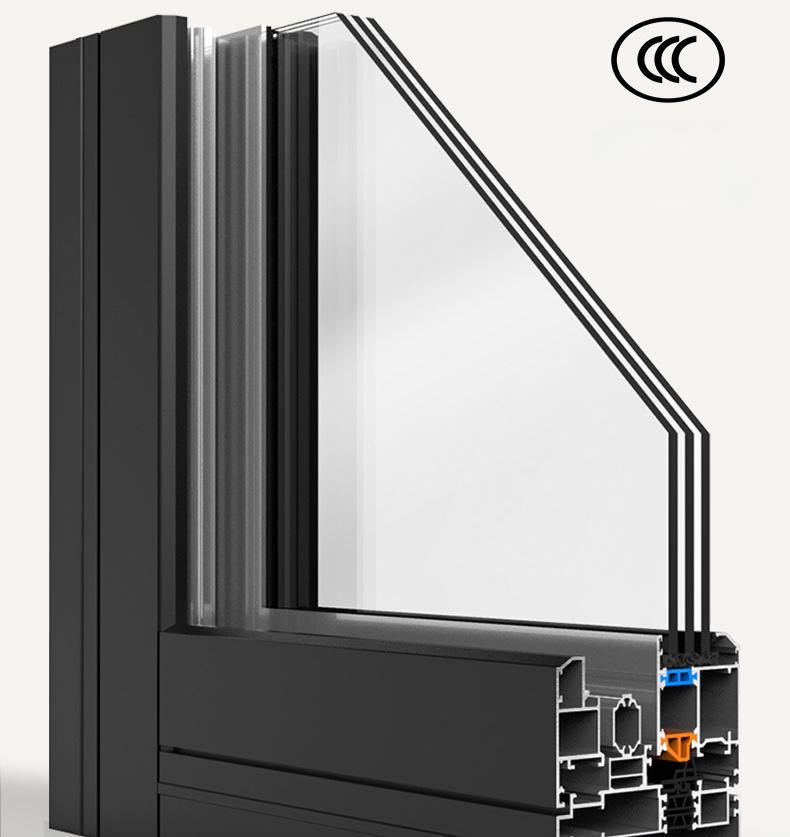

Precision Glazing: Standard Xinyi® tempered glass with argon injection, homogenization treatment, and continuous bent aluminum spacers.
Flexible Operation: Standard outward-opening; Optional inward, tilt-turn, top-hung, or parallel-opening configurations.
Technical Mastery: Full-welded isobaric gaskets, 3-layer EPDM sealing system, and thermal bridge-free vertical profile design.
